STRONG SYNTHETIC ROPE: X-BULL's synthetic rope is lightweight but strong, stronger than steel cable. It also has good bending fatigue resistance, abrasion resistance and weather resistance. It suitable for a variety of harsh environments.
6.4 HP SERIES WOUND MOTOR: The 13000 lb. Winch powered by a 6.4hp output series wound DC 12V pure copper motor. The new solenoid truly achieves the principle of heat insulation, durability, high stability, avoid the problem of capstan damage or motor burning caused by insufficient solenoid power.The new clutch system strengthens the connection between the clutch and the gear, it is not easy to cause damage to the clutch.
WINCH LOAD CAPACITY: 13,000 Pounds; 6.4 Horsepower; Gear Ratio: 265:1; With a 3-stage planetary gear system for strong pulling; The unique design is very suitable for your jeep Wrangler, SUVs, trucks and trailers, making it more attractive and cool.
NEW FORGED GEARING: We won't bock to the drawing board with gearing. We've opted to forged steel instead of stamped steel allowing us to pull more load at a faster speed without sacrificing durability.
3-STAGE PLANETARY GEAR SYSTEM: With its efficient and durable 3 planetary gear system, free spooling clutch and ability to deliver strong traction under load and higher linear speed. Fast line speed, quiet and reliable pulling power, corrosion resistance, waterproof, tough, easy to grip and capable enough to tackle anything you will.
LOWER AMP ORAW: We've re-engineered the internal rotor using specialized silicon steel. This provides a more efficient electrical through put to give you more power while drawing loss amperage.
IP67 WATERPROOF: IP67 waterproof rating and advanced 500 AMP solenoid valve. Equipped with the latest generation wireless remote control for all the latest X-BULL winches.
INSTALLATION TIPS: To install the winch and fairlead, getting a mounting bracket set up which not includes in this product; Please read the instructions carefully and wire according to the instructions before operating the winch(Winches are electrical products that can cause short circuits and heat or smoke if wiring is wrong); Using the snatch block to help your work more easily; Throw a blanket onto the cables to reduce whiplash if something breaks loose; All winches are provided with a red cable marking to identify that 5 cable wraps remain on the winch drum when this mark appears at the rollers. No recovery should be attempted.

SPECIFICATIONS

Rated Line Pull	13000 lbs (5897 kg)
Motor	6.4 HP Series Wound
Gear Train	3-Stage Planetary
Gear Reduction Ratio	265:1
Brake	Automatic Load-Holding
Control	Wireless Remote Control + Wire Remote Control
Battery	12V DC, Minimum 650 CCA
Battery Cables	2 Gauge, 6' (1.83 m)
Fairlead	Aluminium Hawse Fairlead
Cable Type	Synthetic Rope
Cable Size (D x L)	3/8" X 85' (9.5 mm X 24 m)
Overall Dimensions (L x W x H)	21.3" X 6.3" X 10.2" (540 mm X 160 mm X 257 mm)
Drum Size (D x L)	2.5" X 8.8" (64 mm X 224 mm)
Bolt Pattern	10" X 4.5" (254 mm X 114.3 mm)
Weight	60.00 lbs (27.21 kg)
Waterproof Rating	IP67
Line Speed (Max Line Pull)	4.1 fpm (1.25 mpm)
Amp Draw (Max Line Pull)	415 (@ 12V)
Application	Truck/Jeep/SUV

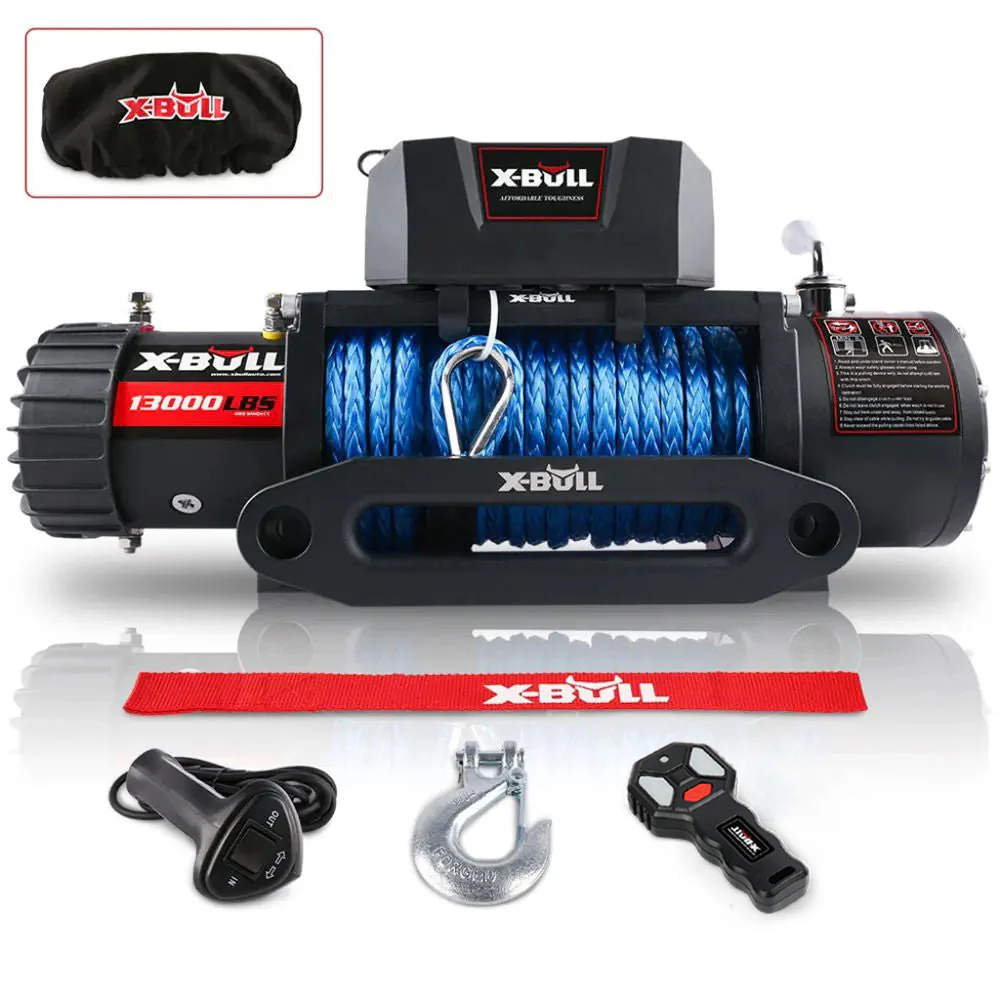

IN THE BOX

1 X 13000 LBS Winch
1 X Wire Remote Control
1 X Wireless Remote Control
1 X Aluminium Hawse Fairlead
1 X Control Box
1 X Set of Cables
1 X Clevis Hook
1 X Set of Bolts
1 X Cover
1 X User Manual

Combo

Price

Collections

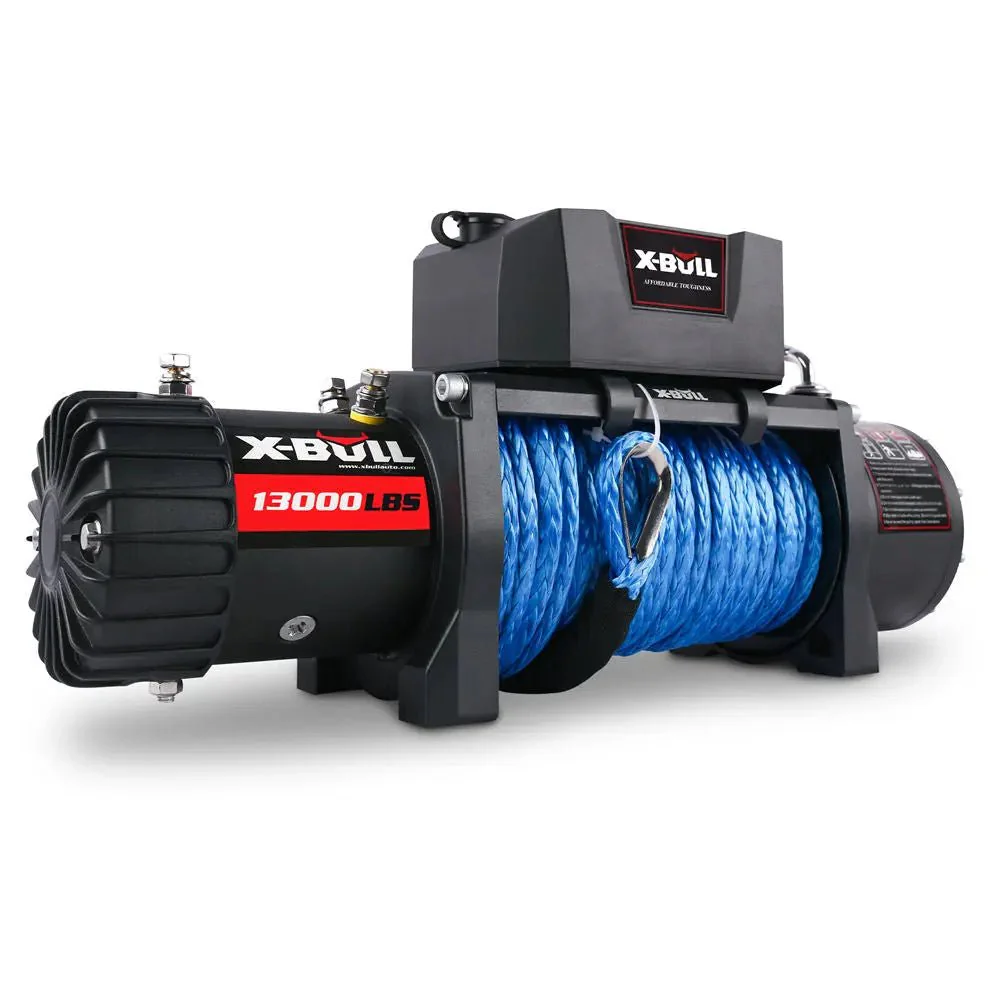

X-BULL Electric Winch 13000 LBS 12V Synthetic Rope SUV Jeep Truck 4WD Blue with Cover
