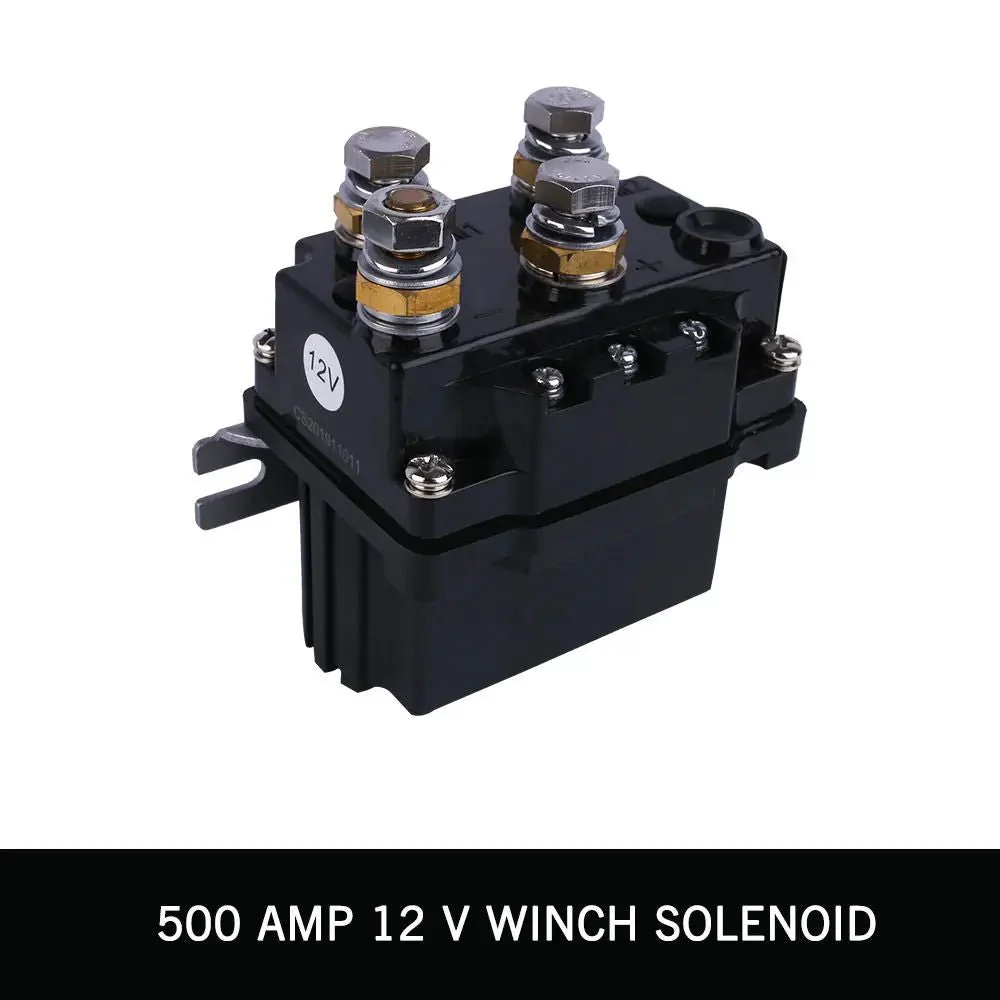

12V 500A Winch Solenoid

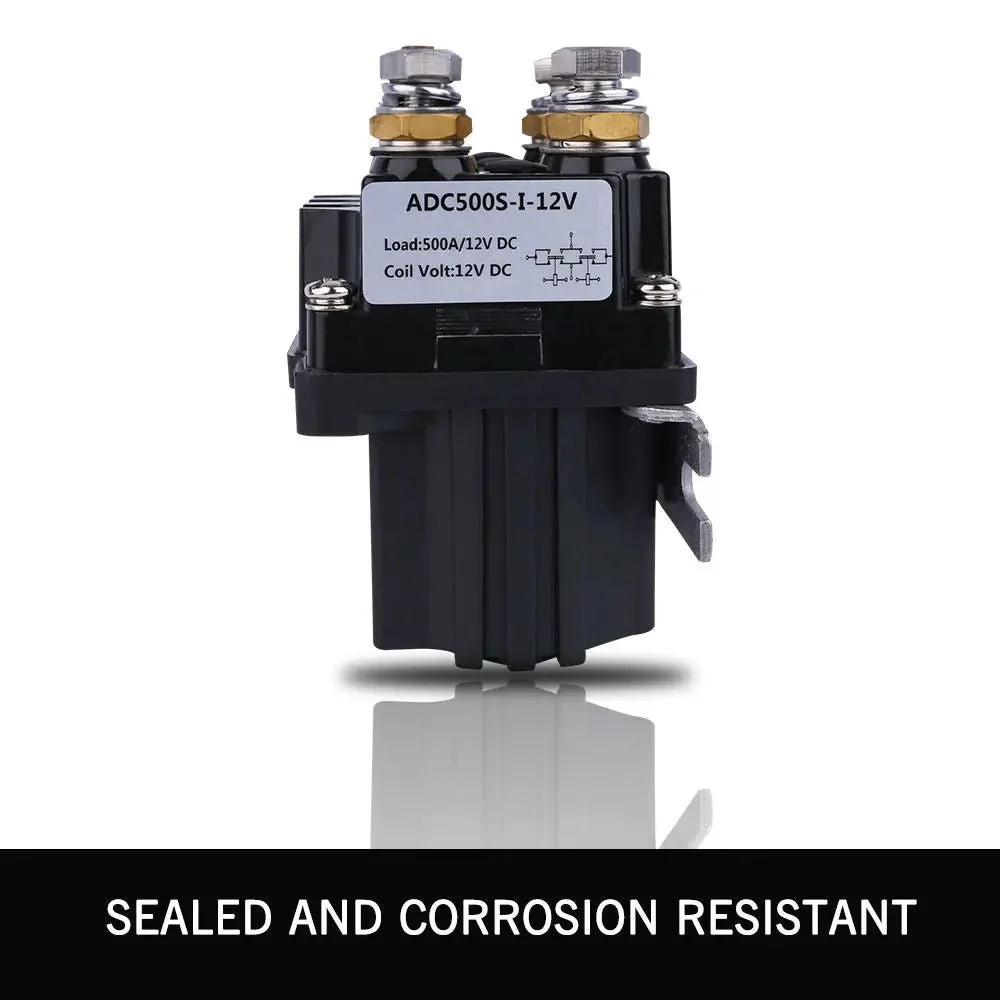

Sealed and corrosion resistant

Solid heavy duty construction

Wireless remote compatible

Suitable 95001bs-17000lbs - Series wound and permanent magnet

Rated for use with 12v winches rated

Sealed and potted electric ATV/UTV contactor/solenoid

Relay works with many brands of winches

Quick connect/disconnect with bullet connectors



Description:

• Coil rated voltage : 6-110V DC
• Operating power : 15W
• Operating Voltage: 12.0 volts

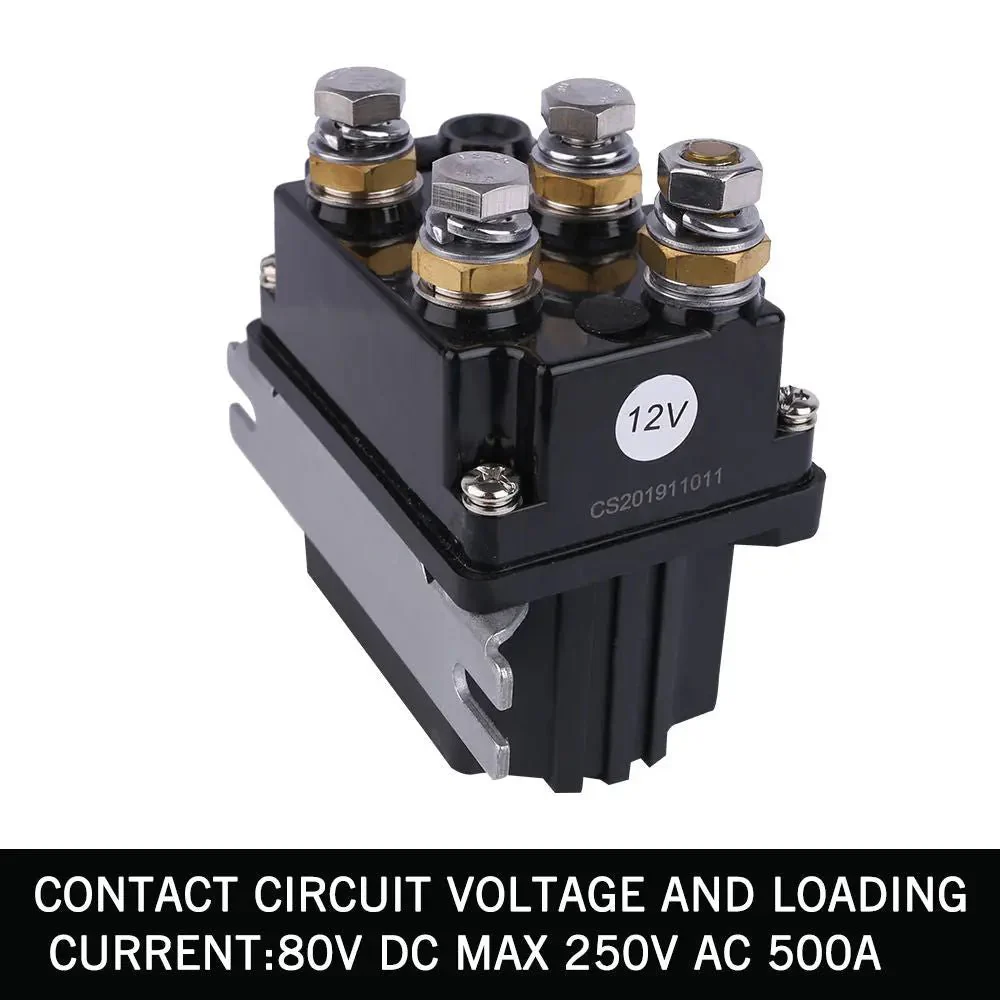

• Contact circuit voltage and loading current : 80V DC Max 250V AC 500A
• Mechanical life : 100,000Ops
• Electrical life : 50,000Ops
• Environment temperature : -40°C - 85°C
• Frequency : 10Hz-200Hz
• Acceleration : ≤3.5g
• Speed : 60-100 per min
• Operation regulation : Continue
• Installation direction : Random
• Connector Type: Quick Connect
• Item Weight: 1.54 pounds

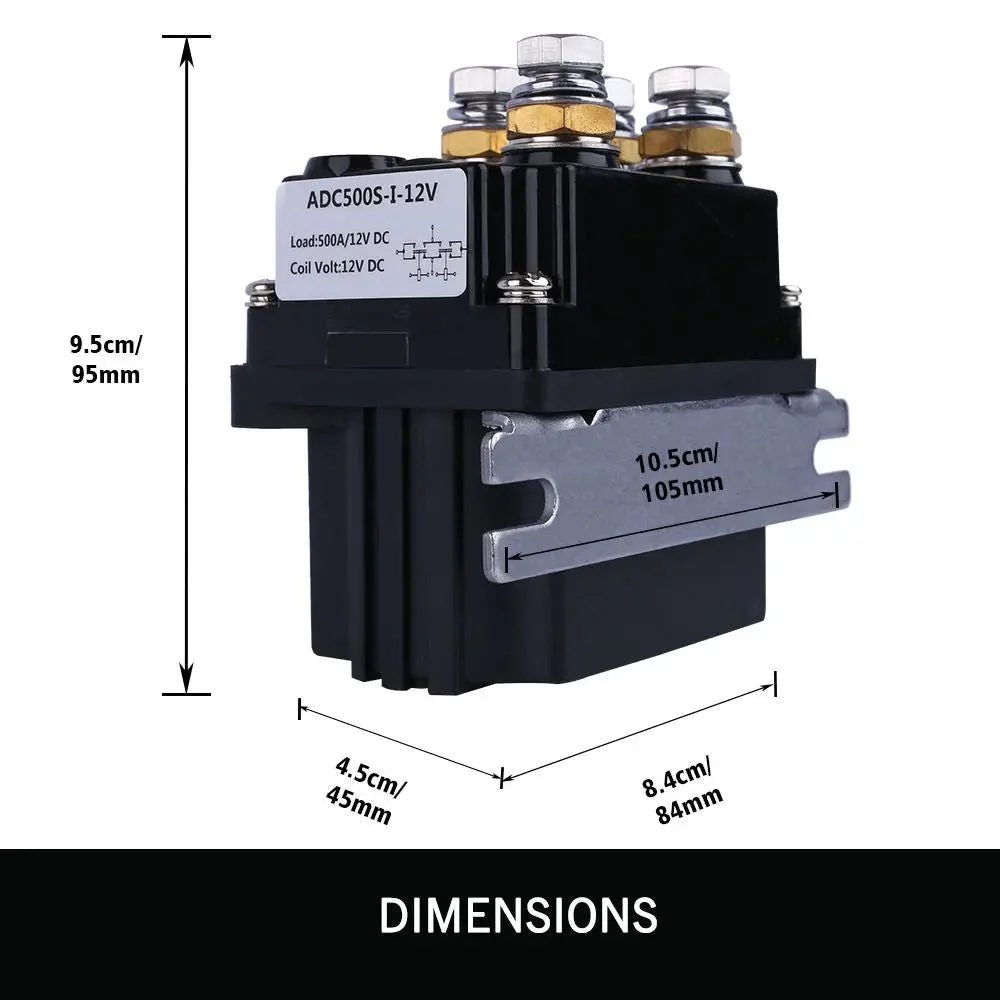

• Package Dimensions : 11.2 x 9.6 x 3 inches; 1.54 Pounds
